Zeroplus LAP-C (162000)

Logic & Protocol Analyzer, 16 ch@2MBit, 100Hz-200MHz, USB Power

Logic & Protocol Analyzer, 16 ch @2Mb, 100Hz-200MHz, USB Power

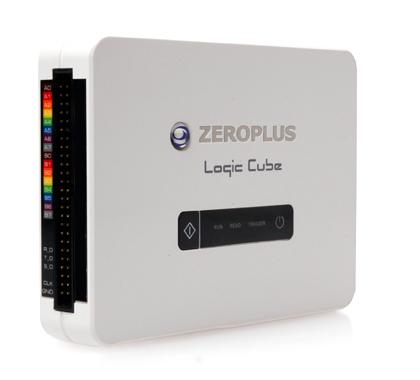

The Zeroplus LAP-C (162000) is a 16-Channel, PC-based Logic Analyzer that features powerful protocol analyzer capabilities. The standard package includes the UART, IIC, SPI, 7-Seg, 1-Wire, CAN2.0B, Microwire, SSI, Manchester, Miller, LCD1602, IRDA, DigitalLogic, 3-Wire, ArithmeticalLogic, UpDownCounter, USB1.1, JTAG2.0 & PS/2 Protocol Analyzer plug-ins. You will also receive printed instructions on how to activate the remaining protocol decoder plugins of your choice for free. This is the List of all available protocol decoder plugins.

The Zeroplus patented waveform compression technology increases the effective sample memory capacity far beyond the physical 32MBit. All 16 channels of the LAP-C (162000) can achieve a compression rate up to 255× depending on the data content, allowing you to obtain considerably more sampling data.

The logic analyzer connects to a PC via USB. It supports the full 480Mbps USB 2.0 speed, but also can use 12Mbps USB 1.1. The analyzer is powered directly from the USB.


  • Model Type : PC Based Logic Analyzer
  • Operating systems : Microsoft Windows (2000/XP/Vista/Vista64/Win7-32/Win7-64)
  • Interface : USB2.0 (1.1)
  • Power : USB
  • Power Dissipation (running) : max. 2W
  • Sample rate : Internal clock (Timing Mode) 100Hz - 200MHz
  • Sample rate : External clock (State Mode) 100MHz
  • Bandwidth : 75MHz
  • Total Memory : 32MBit
  • Memory depth (per channel) : 2MBit
  • Memory depth with compression enabled (per Channel) : up to 512MBit (best case)
  • Trigger condition : pattern / Edge
  • Trigger channel : 16 channels
  • Pre/Post trigger
  • Threshold Voltages : Working range -6V~+6V
  • Threshold Voltages : Accurate rate -/+ 0.1V
  • Maximum input voltage : +/- 30V
  • Impedance : 500kOhms/10pF
  • Data Skew <1.5ns
  • Dimensions: 130 x 100 x 30mm
  • I2C, SPI, UART (RS232 & RS485), 7-Segment, 1-Wire, Manchester, Miller, Microwire, SSI & CAN 2.0b included
  • All available protocol decoder plugins of your choice for free

System Requirements

  • Microsoft Windows (2000/XP/Vista/Vista64/Win7-32/Win7-64)
  • 300 MHz CPU or faster
  • 256MB RAM or more
  • 100MB available disk space
  • 1 USB Port


Package Contents

  • LAP-C (162000) logic analyzer unit
  • Protocol Analyzer software plug-ins for I2C, SPI, UART, 7-Segment, 1-Wire, Manchester, Miller, Microwire, SSI & CAN 2.0B
  • All available protocol decoder plugins of your choice for free
  • USB cable
  • Two 8-channel signal connectors
  • One 2-channel signal connector
  • One single-channel signal connector
  • 20 test hook grips in 10 different colors
  • Software CD-ROM or USB-Key
  • Printed User Manual

The included signal connector cables are 25cm in length. A 40cm cable package is available separately: Contact
