Zeroplus LAP-B(702000)X

Logic & Protocol Analyzer, 70ch @2MBit, up to 1000MHz

Logic & Protocol Analyzer, 70ch @2MBit, up to 1000MHz

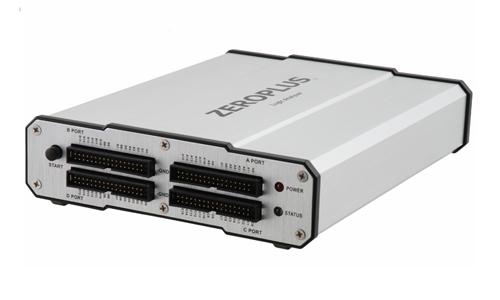

The Zeroplus LAP-B (702000)X PC-based logic analyzer features powerful protocol analyzer capabilities. The standard package includes all available protocol analyzer plug-ins (More than 75, eg. I2C, UART, SPI, 1-Wire, HDQ, CAN, IIS, PS/2, LIN, Microwire, SSI, Manchester, Miller, PCI, USB and many more).

The Zeroplus patented waveform compression technology increases the effective sample memory capacity far beyond the physical 140Mbit. Depending on the sampled data, the compression ratio can go up to 4G (4'000'000'000). This allows you to obtain considerably more sampling data.

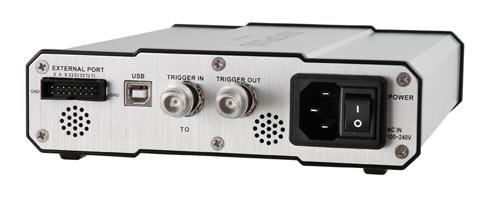

The logic analyzer connects to a PC via USB. It supports the full 480Mbps USB 2.0 speed, but also can use 12Mbps USB 1.1. The analyzer has a build in 100-240V Power Supply

Features

  • Model Type : PC Based Logic Analyzer
  • Operating systems : Windows (2000/XP/Vista)
  • Interface : USB2.0 (1.1)
  • Power : AC 110/230V
  • Power Dissipation (running) : max. 10W
  • Power Dissipation (standby) : max. 5W
  • 70-Channel Mode: The highest Sampling Frequency is 333MHz, the available channels are 70ch and the RAM Size is 2M
  • 32-Channel Mode: The highest Sampling Frequency is 500MHz, the available channels are 32ch and the RAM Size is 4M
  • 16-Channel Mode: The highest Sampling Frequency is 1GHz, the available channels are 16ch and the RAM Size is 8M
  • External Clock(State)( Synchronous): 150MHz max.
  • Bandwidth : 200MHz
  • Total Memory : 140MBit
  • Trigger Condition : Pattern/Edge/Pulse Width/AND/OR
  • Trigger Channels : 64CH/32CH/16CH
  • Pre/Post trigger
  • Binary/Decimal/Hex display formats provided
  • Flexible signal trigger options (rising edge, falling edge, either edge, high and low)
  • Threshold Voltages : Working range -6V~+6V
  • Threshold Voltages : Accurate rate -/+ 0.1V
  • Maximum input voltage : +/- 30V
  • Impedance : 500kOhms/10pF
  • Data Skew <1.5ns
  • Dimensions: 250mm * 170mm * 47mm
  • All available Protocoll Decoers are included

    • Logic


System Requirements

  • Microsoft Windows 2000 Pro SP4, XP, or Vista
  • 300 MHz CPU or faster
  • 256MB RAM or more
  • 100MB available disk space
  • 1 USB Port

Downloads


Package Contents

  • LAP-B (702000)X logic analyzer
  • All available Protocoll Analyzer software plug-ins (More than 100, eg. I2C, UART, SPI, 1-Wire, HDQ, CAN, IIS, PS/2, LIN, Microwire, SSI, Manchester, Miller, PCI, USB and much more)
  • USB cable
  • 4 1-channel signal connectors
  • 4 2-channel signal connectors
  • 8 8-channel signal connectors
  • 72 test hook grips in 10 different colors
  • Software CD-ROM or USB-Key
  • Printed Getting Started Guide
