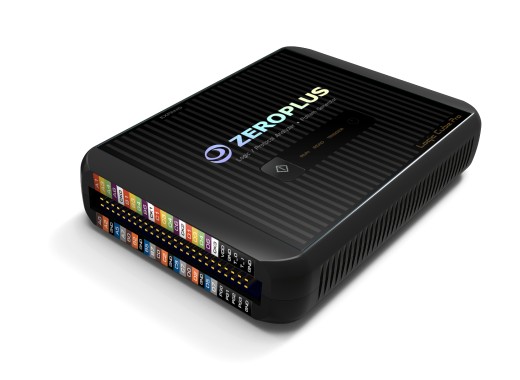

Zeroplus LAP-C-PRO (32256M)
Logic & Protocol Analyzer, 32ch @256MBit, USB 3.0, USB powered
With these devices it's possible to sample the data to the internal memory, or to stream the data directly to the connected PC for limitless storage on the PC's Harddisk/SSD.The analysers are available with up to 32 channels and feature a sample rate of 2GHz. This means in practice, that almost all digital signals can be precisely recorded and analysed. Combining this with decoding of more than 128 different protocols, the large internal storage, various triggering options and broad and precisely configurable trigger thresholds makes the product very usable and competitive. Features
- PC Based Logic Analyzer
- PC Operating systems : Win7, Win8, Win10, Win11
- Interface : USB3.0 (USB2.0 compatible)
- Power : USB
- Power Dissipation (running) : 3W
- Sample rate : Internal clock (Timing Mode) max. 2GHz
- Sample rate : External clock (State Mode) max. 250MHz
- Bandwidth : 250MHz
- Total Memory : 16GBit
- Memory depth (32 channels) : 256MBit
- Memory depth (16 channels) : 512MBit
- Memory depth (32 channels) : 1024MBit
- Trigger Condition : Pattern / Edge / Pulse-width / Interval (Time)
- Trigger Channels : 3232 channels
- 256 Trigger Sequence Levels
- Hardware Protocoll Trigger for I2C, I2S, SPI, SVID, UART, CAN2.0B
- 4 channel Pattern Generator (I2C, SPI, etc.)
- Threshold Voltages : Working range -6V~+6V
- Threshold Voltages : Accurate rate -/+ 10mV
- Maximum input voltage : +/- 30V
- Impedance : 200kOhms/7pF
- Dimensions: 126 x 95 x 25mm
System Requirements
- Microsoft Windows (Win7, 8, 10, 11)
- 2GHz CPU or faster
- 4GB RAM or more
- 80GB available disk space
- Screen Resolution >= 1024 x 768
- USB Port (USB3.0 recommended)
Downloads

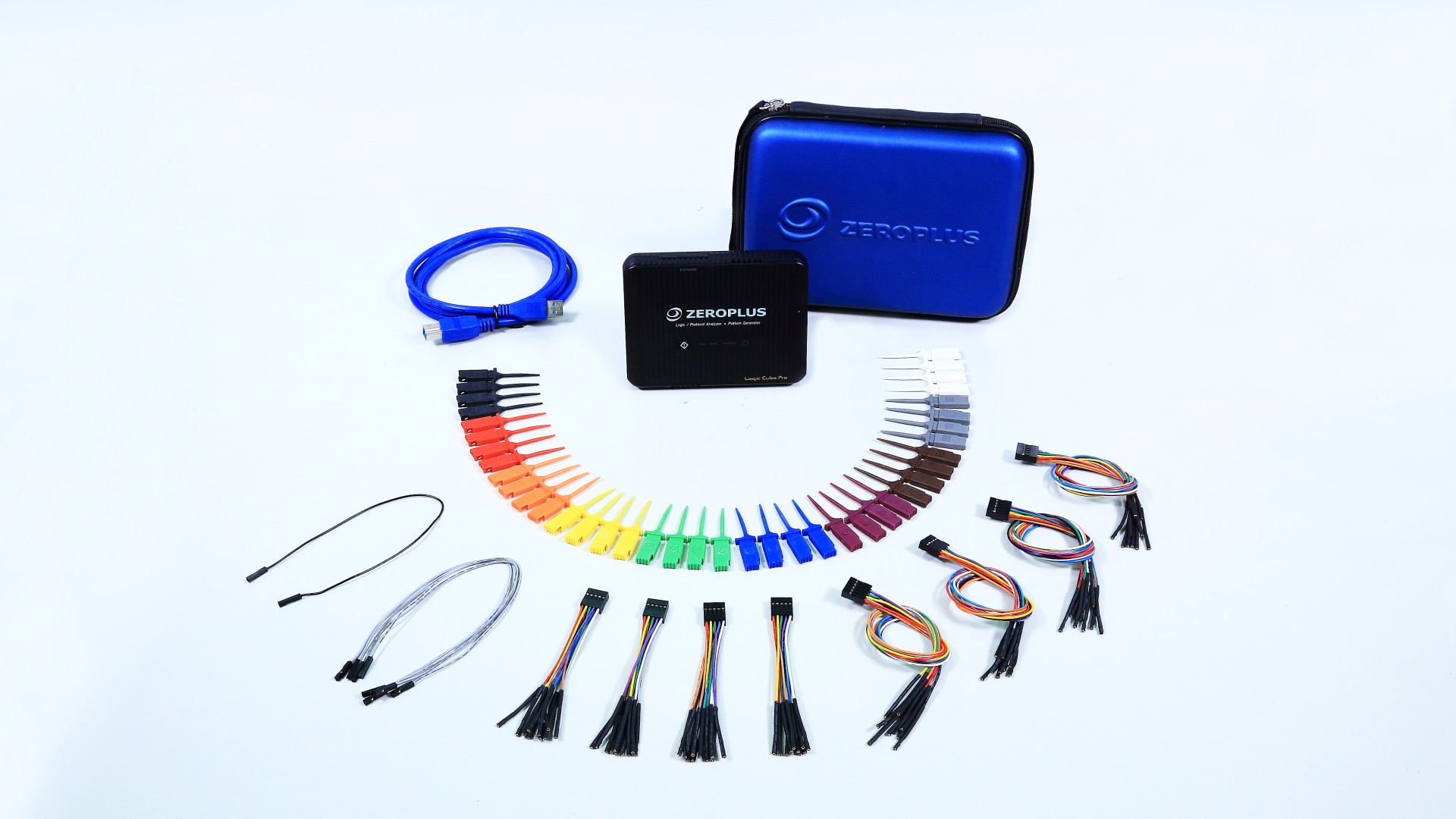

Package Contents- LAP-C-PRO (32256M) logic analyzer unit
- USB 3.0 cable
- 4pcs 2x5 pin Probes 10cm
- 4pcs 2x5 pin Probes 25cm
- 4pcs 1 pin Probe gray 25cm
- 4pcs 1 pin Probe black 25cm
- 40 test hook grips in 10 different colors
- USB Key with Software
Protocol Decoders/Analyzers
The following Protocol can be decoded:
| AC97 |
ISO7816UART |
PROFIBUS |
| AES_EBU |
IO-Link |
QuadSPI |
| AMD_SVI2 |
JTAG2.0 |
QI |
| ARITHMETICALLOGIC |
JKFLIP-FLOP |
RGBInterface |
| BDM |
KEELOQCodeHopping |
SerialGPIOIBPI |
| BMS |
KNX |
SVID |
| CAN2.0B |
LIN2.1 |
SLE4442 |
| CANFD |
LowPinCount |
SSIInterface |
| CCIR601 |
LPC-SERIRQ |
ST7669 |
| CCIR656 |
LPT |
SPI |
| CMOSIMAGE |
LCD12864 |
SPIPLUS |
| CompactFlash4.1 |
LCD1602 |
SerialWireDebug(SWD) |
| DSIBus |
LG4572 |
S/PDIF |
| DDCEDID |
LEDPitchArray |
STBus |
| DSAInterface |
LineCode |
SPICompatible(AtmelMemory) |
| DPAUXChannel1.2a |
MVB |
SAMSUNGK9(NANDFlash) |
| DIGITALLOGIC |
MCU-51DECODE |
SD2.0/SDIO |
| DALIInterface |
MDDI |
SD3.0 |
| DM114/DM115 |
MICROWIRE |
S2Cwire/AS2Cwire |
| DMX512 |
MIPIDSI |
SCCB |
| DifferentialManchester |
MHL-CBUS |
SDQ |
| DigRF |
MIDI |
SMBus2.0 |
| DS1302 |
MIPI_CSI-2 |
SIGNIA6210 |
| DS18B20 |
MICROWIRE(EEPROM93C) |
SWP |
| eSPI |
MIPIRFFE |
SHT11 |
| eMMC |
MANCHESTER |
7-SEGMENTLED |
| FlexRay2.1A |
MII |
SoundWire |
| FWH |
MILLER |
USB1.1 |
| GPIB |
MIL-STD-1553 |
USB2.0 Attention |
| HIDOverI2C |
MODIFIEDMILLER |
USBPD3.0 |
| HPI |
ModBus |
UART(RS-232C/422/485) |
| HDAudio |
MODIFIEDSPI |
UPDOWNCOUNTER |
| HDMICEC |
NECPD6122 |
UNI/O |
| HDQ |
OPENTHERM2.2 |
WTB |
| HART |
PCI |
1-WIRE |
| HDLC |
PECI |
1-Wire(Advanced) |
| I2C |
PS/2 |
3-WIRE |
| I2C(EEPROM24L) |
PCM |
WIEGAND |
| I2C(EEPROM24LCS61/24LCS62) |
PSBInterface |
WWV/WWVH/WWVB |
| I3C |
PhilipsRC-5 |
YK-5 |
| I2S |
PhilipsRC-6 |
BissC |
| IDE |
PT2262/PT2272 |
|
| IRDA |
PMBus1.1 |
|
Attention Please note, that for decoding USB2.0 (480MBits), an additional USB Capture Board is required.
|
