Zeroplus LAP-C (32128)

Logic & Protocol Analyzer, 32ch @128kBit, 100Hz-200MHz, USB Power

Logic & Protocol Analyzer, 32 ch @128kBit, 100Hz-200MHz, USB Power

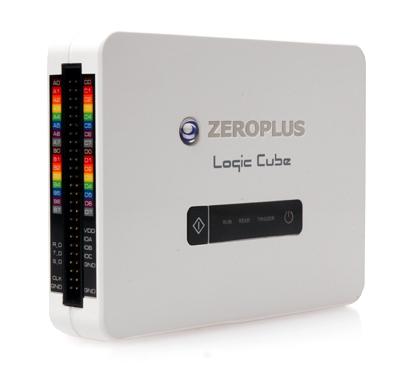

The Zeroplus LAP-C (32128) PC-based logic analyzer features powerful protocol analyzer capabilities. The standard package includes all available protocol decoderaplug-ins (More than 100 available, eg. I2C, UART, SPI, 1-Wire, HDQ, CAN, IIS, PS/2, LIN, Microwire, SSI, Manchester, Miller, PCI, USB 1.1 and much more).

The Zeroplus patented waveform compression technology increases the effective sample memory capacity far beyond the physical 4Mbit.The LAP-C (32128) can achieve a compression rate of up to 255, depending on the data content, allowing you to obtain considerably more sampling data.

The logic analyzer connects to a PC via USB. It supports the full 480Mbps USB 2.0 speed, but also can use 12Mbps USB 1.1. The analyzer ispowered directly from the USB.

Features

  • Model Type : PC Based Logic Analyzer
  • Operating systems : Microsoft Windows (2000/XP/Vista/Vista64/Win7-32/Win7-64/Win10)
  • Interface : USB2.0 (1.1)
  • Power : USB
  • Power Dissipation (running) : max. 2W
  • Sample rate : Internal clock (Timing Mode) 100Hz - 200MHz
  • Sample rate : External clock (State Mode) 100MHz
  • Bandwidth : 75MHz
  • Total Memory : 4MBit
  • Memory depth (32 channels) : 128kBit
  • Memory depth (16 Channels) : 256kBit
  • Memory compression rate of up to 255 (best case)
  • Trigger Condition : Pattern / Edge
  • Trigger Channels : 32 channels
  • Pre/Post trigger
  • Binary/Decimal/Hex display formats provided
  • Flexible signal trigger options (rising edge, falling edge, either edge, high and low)
  • Threshold Voltages : Working range -6V~+6V
  • Threshold Voltages : Accurate rate -/+ 0.1V
  • Maximum input voltage : +/- 30V
  • Impedance : 500kOhms/10pF
  • Data Skew <1.5ns
  • Dimensions: 130 x 100 x 30mm

Logic & Protocol Analyzer, 32 ch @2MBit, 100Hz-200MHz, USB Power

System Requirements

  • Microsoft Windows (2000/XP/Vista/Vista64/Win7-32/Win7-64)
  • 300 MHz CPU or faster
  • 256MB RAM or more
  • 100MB available disk space
  • 1 USB Port

Downloads


Package Contents

  • LAP-C (32128) logic analyzer unit
  • USB cable
  • Two 8-channel signal connectors
  • One 2-channel signal connector
  • One single-channel signal connector
  • One 16-channel signal connectors
  • 36 test hook grips in 10 different colors
  • Software CD-ROM or USB Key
  • Printed User Manual


The included signal connector cables are 25cm in length.
